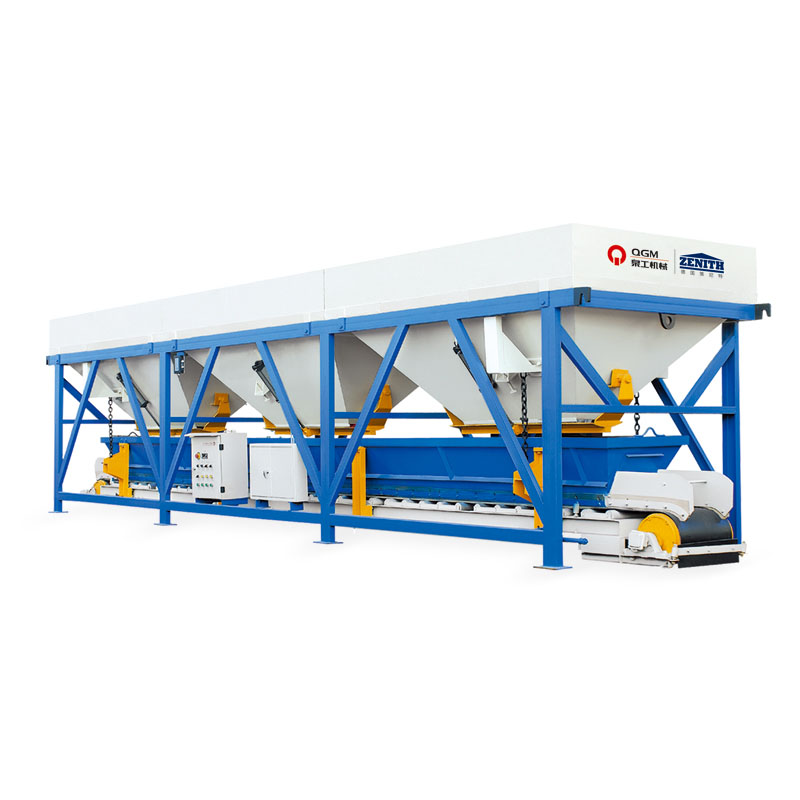

Cib Batching Tshuab

Raws li cov kws tshaj lij cov chaw tsim khoom, peb xav muab koj lub Cib Batching Tshuab. Nws tuaj yeem raug xaiv raws li hom khoom siv hauv zos, nrog rau 3 bins rau 6 bins xaiv, thiab tus nqi ntawm ntau cov ntaub ntawv tuaj yeem teem rau hauv qhov sib piv.

Xa lus nug

Product Description

Raws li cov kws tshaj lij cov chaw tsim khoom, peb xav muab koj lub Cib Batching Tshuab. Lub tshuab ua cib siv ya tshauv, slag, ntxhia hmoov, tailing slag, siv pov tseg, thiab lwm yam raws li cov ntaub ntawv tseem ceeb, thiab tsim cov cib ntawm ntau qhov ntau thiab tsawg los ntawm kev nias thiab vibration. Nws daws qhov teeb meem ntawm kev tsim cov khib nyiab pov tseg rau ib puag ncig, thiab tseem muab cov khoom muaj txiaj ntsig ntawm ib puag ncig zoo rau kev tsim kho kev lag luam. Nws tuaj yeem raug xaiv raws li hom khoom siv hauv zos, nrog rau 3 bins rau 6 bins xaiv, thiab tus nqi ntawm ntau cov ntaub ntawv tuaj yeem teem rau hauv qhov sib piv. Lub luag haujlwm yog los xyuas kom meej cov khoom zoo thiab txo tus nqi. Cov khoom siv raw khoom yog ntsuas los ntawm qhov tsis siv neeg batching system thiab thauj mus rau lub lifting hopper, uas yog nqa mus rau hauv qhov chaw los ncuav cov khoom raw rau hauv lub tov khoom rau kev sib tov.

Technical Parameters

lt	PL800 ua	PIB 1200	PIB 1600
CBM ntawm Weighing Bin	0,8m 3	1,2m 3	1,6m 3
CBM ntawm Aggregate Bin	2x4m 3	3x4m 3	3x6m 3
Productivity	48m3h ib	60 m3/h	80m3h ib
Ntsuas qhov tseeb	± 2%	+2%	± 2%
Qhov hnyav tshaj plaws	1,500 kg	2,000 kg	3,000 kg
Hom Aggregate	2	3	3
Chaw thau khoom siab	2,300 hli	2,400 hli	3,000 hli
Ntsuas qhov system	Hluav taws xob	Hluav taws xob	Hluav taws xob
Hwj chim	4.5 kwm	10.6 kwm	11.7 kwm
Qhov hnyav tag nrho	2,250 Kg	3 ,760kg	4 ,820kg
Tshuab Loj (L * W * H)	5,600 * 1,560 * 2,760 hli	8,390 * 2,000 * 2,800mm	9,500 * 2,300 * 3,300 hli
