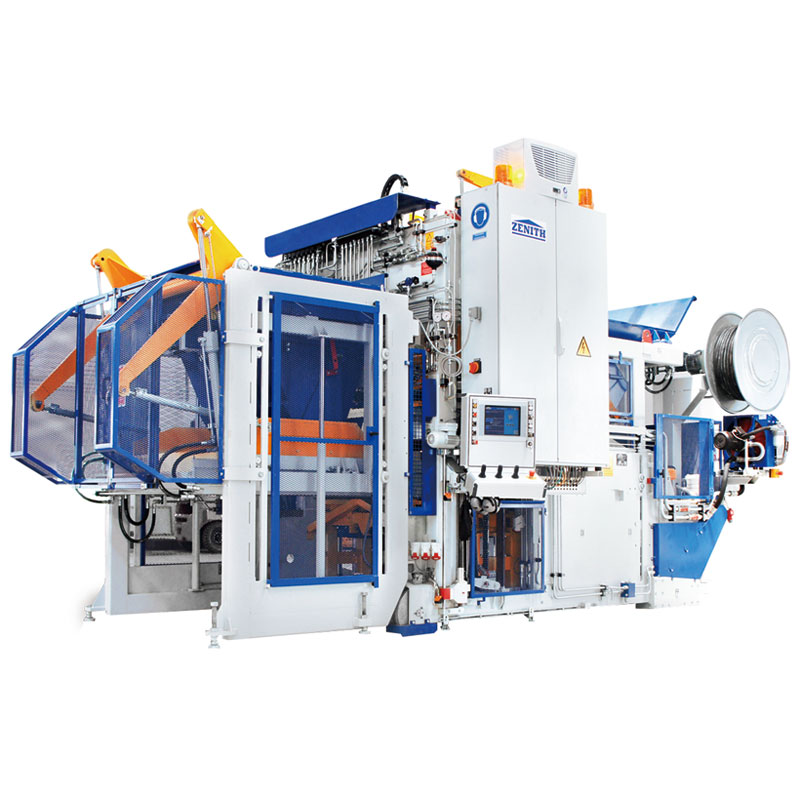

Zenith 940SC Pallet-Dawb Thaiv Tshuab

Raws li cov chaw tsim khoom, peb xav muab koj Zenith 940SC Pallet-Dawb Thaiv Tshuab. Qhov ntau yam 940sc muaj qhov dav tshaj plaws ntawm kev tsim muaj peev xwm ntawm tag nrho cov pob zeb thaiv thiab paving thaiv tshuab ntawm lub ntiaj teb ua lag luam. Nws tuaj yeem siv los ua lub tshuab thoob ntiaj teb nrog rau lub tshuab siab rau cov khoom tsis yog cov qauv thiab tuaj yeem siv los ua kom tiav ib qho kev cog ntoo pallet los tsim cov khoom lag luam niche. Lub tshuab no yog tsim los rau cov kev xav tau zoo tshaj plaws thiab tsim cov nqi qis heev xws li paving blocks nrog kev sib xyaw los yog hollow blocks thiab lwm yam.

Main Technology nta

1) Tus kheej piav qhia, cov ntawv qhia zaub mov-tsav Kov Vaj Huam Sib Luag ua rau lub tshuab ua haujlwm yooj yim heev. Cov khoom tsis raug rau ntau hom pwm thiab cov kev tsim khoom tau nkag mus thiab khaws cia los ntawm kev siv lub npog ntsej muag zoo. Siemens SPS ceev yog siv rau kev ua cov teeb liab intenal.

2) High-eifficiency Hydraulic System. Hydraulic fais fab siv ob lub voj voog siab; Hydraulic system nrog ob lub Milti-Star- Piston Pumps. Nws siv proportional hydraulic technology los kho qhov ceev thiab ua hauj lwm raws li cov khoom sib txawv tsim. hydraulic txav tuaj yeem tsav tau ib txhij thiab ntawm nws tus kheej nrog qhov sib txawv ntawm qhov nrawm thiab qhov siab thiab tag nrho cov ntaub ntawv tuaj yeem teeb tsa hauv lub vijtsam kov. Tag nrho cov ntaub ntawv zoo li lub sijhawm, kev suav, kev xaiv, hydraulic ceev thiab siab tuaj yeem teeb tsa los ntawm kov npo.

3) High-eifficiency Vibration system. Lub rooj vibration yog tsim los kom muaj plaub theem ntau lawm; Sab saum toj ntawm lub rooj vibration yog ob-parted nyob rau hauv thiaj li yuav ua tau ib tug txawm lub hwj chim kis tau tus mob thiab ib tug optimum compaction; Kev hloov pauv hloov lub phaj rau kev tiv thaiv sab sauv ntawm lub rooj vibration: Lub rooj vibration rau kev lees txais ntawm ob lub vibrators kom ua tiav qhov siab tshaj plaws centrifugal quab yuam ntawm 80 kN; los tsim 50cm siab blocks, pwm ncej yog nruab nrog vibrators. (Nws tuaj yeem nruab nrog 2, 4, 6. 8 vibrators raws li qhov siab thaiv), Vibration motors siv Servo motors.

4) Aggregate Feeding system. Feeder nrog hydraulic tsav; tuaj yeem kho lub npov feeder khiav ntawm kev hloov pauv tus ntsaum torque siab precision rail raws li cov pwm sib txawv, feeder qhia log txoj kab uas hla Ø 80mm; Hydraulic tsav swivel scraper (peb feem) rau kev tu kom zoo ntawm pwm nto; Lub hydraulically tsav tis grate yog ua rau ib tug txawm faib ntawm cov pob zeb nyob rau hauv lub pwm; Qhov siab adjustable tu txhuam, txuas rau pem hauv ntej phab ntsa ntawm cov tub rau khoom noj rau kev tu lub taub hau khau ...

Technical Data

Base khoom hopper	1,200 L
Base khoom feedbox	2,000L
Pigment hopper	800l ua
Pigment feedbox	2,000L
Max.feeding qhov siab ntawm loader	2,800 hli
Qhov loj me
Max sib sau ntev	12 40mm
Max foming dav (ua rau ntawm lub rooj vibration)	1.000 hli
Max foming dav (ua rau hauv av)	1, 240 mm
Khoom siab
Ntau txheej ntau lawm
Min.product qhov siab (ua rau ntawm lub pallet)	50 hli
Max. khoom siab	250 hli
Max stacking heightpallet qhov siab ntawm ib txheej khoom)	6 40mm
Qib qis ntau lawm ntawm lub pallet
Max khoom qhov siab	600 hli
Qib qis ntau lawm hauv pem teb
Max.product qhov siab	650 hli
Kev tsim khoom hauv pem teb
Max. khoom siab	1.000 hli
Min cov khoom siab	250 hli
Tshuab hnyav
Tsis muaj pwm thiab pigments ntaus ntawv	11.7 t ib
Pigment device	1.7t ib
Tshuab loj
Tag nrho ntev (tsis muaj pigment device)	4,400 mm
Tag nrho ntev (nrog cov khoom siv xim)	6, 380mm
Max. tag nrho qhov siab	3, 700 mm
Min tag nrho qhov siab (ransport qhov siab)	3, 240 mm
Tag nrho widh (nrog rau kev tswj vaj huam sib luag)	2, 540mm
Kev vibration system
Max. exciting zog ntawm kev vibration dab neeg	80 KN
Min. excting quab yuam ntawm sab saum toj kev co	40 KN
Kev siv hluav taws xob
Raws li qhov siab tshaj plaws ntawm cov lus vibrating	42 KW TSI

Muaj Peev Xwm Ntau Lawm

Thaiv Hom	Qhov Loj (mm)	Duab	aty/Cycle	Lub Sijhawm Sijhawm	Muaj Peev Xwm Ntau Lawm (Rau 8hs)
Hollow Thaiv	400 * 200 * 200 hli		12	40s ib	8, 640 ib
Rectangular Paver	200 * 100 * 60 hli		54	38s ib	817m 2
Rectangular Paver (tsis muaj facemix)	200 * 100 * 60 hli		54	36s ib	864m 2
UNI Pavers	225 * 112.5 * 60-80		40	38s ib	757m2 ua
Curstone	150 * 1000 * 300 hli		4	46s ib	2,504 pcs
