Main Technology nta

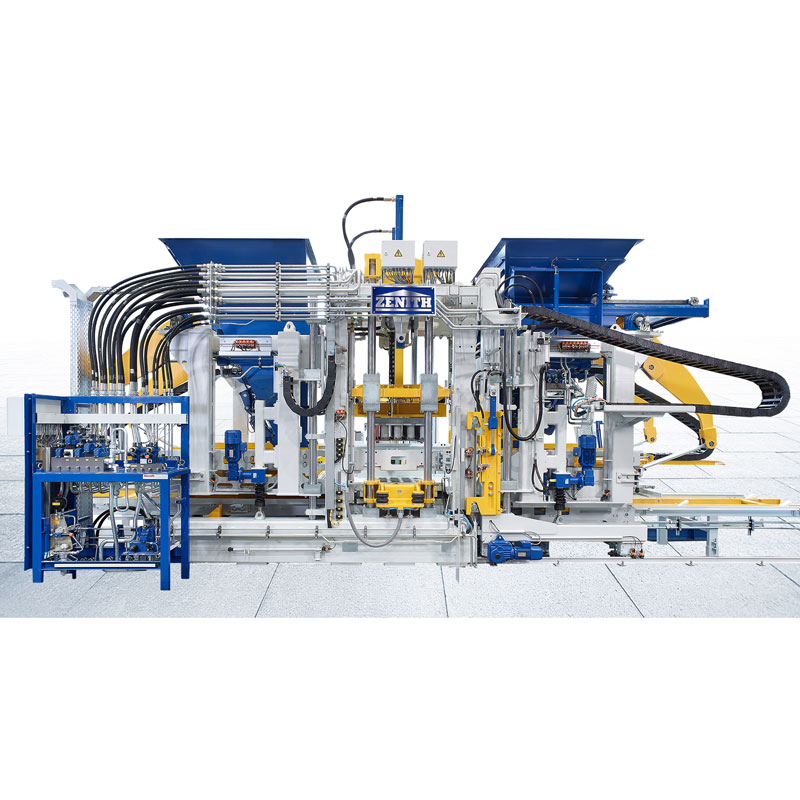

1) Koj tuaj yeem so assured mus yuav Zenith 1500 Ib Pallet Block Ua Tshuab los ntawm peb lub hoobkas. Lub siab zoo servo compaction system npe hu ua Ultra-Dynamic stands rau lub siab heev compaction thiab huab dynamics. Nws yog li ntawd guarantees ib tug ceev thiab npaum zus tau tej cov khoom zoo tshaj plaws. Tshwj xeeb tshaj yog rau cov khoom lag luam nrog lub ntim loj thiab tseem rau cov khoom lag luam hwm, uas yog tsim los nrog kev vibration ua ntej thiab nruab nrab, qhov kev co no muab ntau yam zoo. Lub kaw lus ua haujlwm yam tsis muaj roj da dej txhawb nqa kev tsim khoom hauv eco-tus phooj ywg thiab kev saib xyuas qis.
2) Kev siv cov ntsia hlau fittings rau lub rooj vibration, lub cev muaj zog cross beam thiab thav duab sab qhov chaw yog qhov tshwj xeeb ntawm no Zenith 1500 Ib Pallet Block Making Machine. Nws yog qhov tshwj xeeb ntawm kev ua lag luam vim nws tuaj yeem hloov kho rau cov neeg siv khoom tsim khoom. Kev tsim kho screwed kuj muab rau kev sib txuas tiv thaiv thiab kev ruaj ntseg zoo heev.

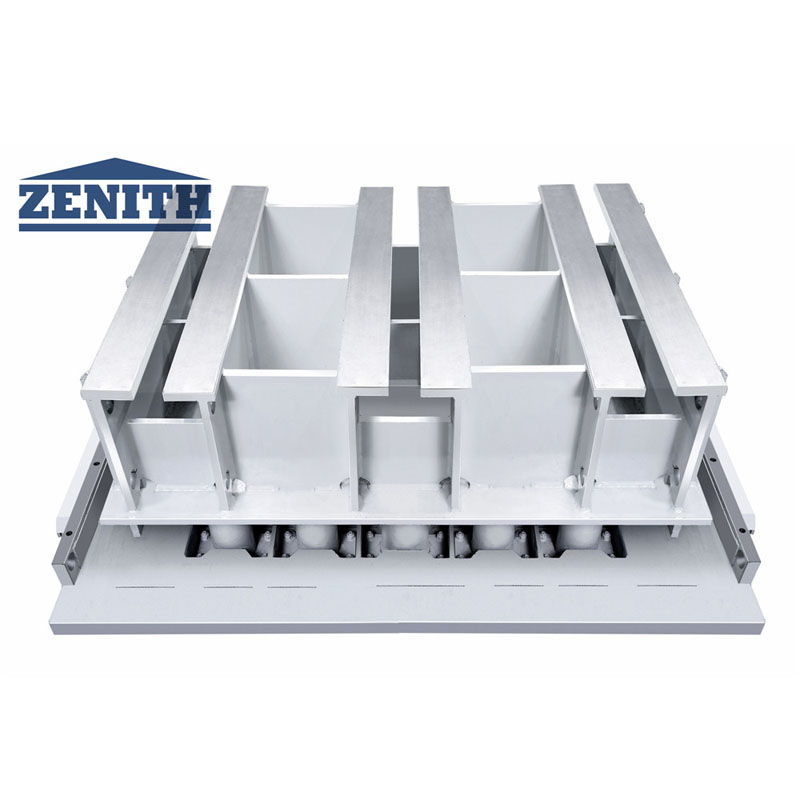

3) Pneumatic pwm clamping cuab yeej muab rau kev hloov pwm yooj yim. Cov pwm yog positioned yam tsis muaj fastenings ntxiv-piv txwv li. bolts ntawm lub pwm yas dhos. Nws yog tsau los ntawm pneumatically ua haujlwm clamping levers. Qhov zoo tshaj plaws kev vibration tau thiab lub sij hawm ntev pwm lub neej yog ua tiav ua tsaug rau tus neeg hloov kho ntawm pre- thiab lub ntsiab kev co. Cov pwm clamping cuab yeej tam sim no tuaj yeem hloov kho rau pwm fastening tshuab ntawm lwm lub tshuab thiab pwm manufacturers.
4) A new traverse has been developed for the Zenith 1500 Single Pallet Block Making Machine which allows to remove the columns individually from the side. This new feature saves a lot of time during maintenance work and th exchange can be carried out much more safely and with less effort. The entire geometry of this assembly including columns is identical to previous machine ZENITH 1500. It is possible to retrofit this new traverse on existing machines.

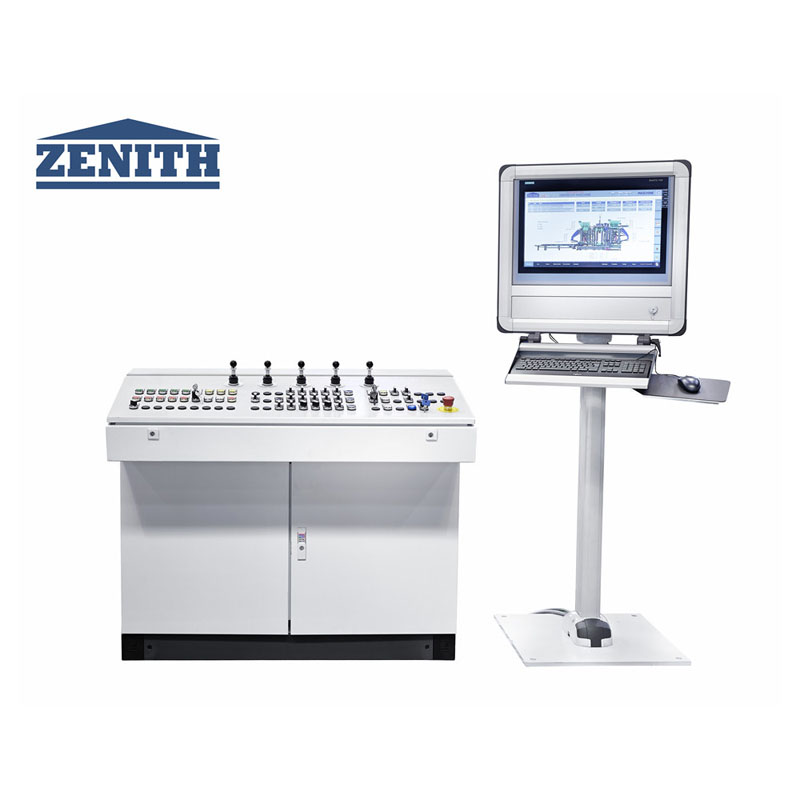

5) 5) Lub tswv yim piav qhia tus kheej thiab kev xav pom qhov pom tau lees paub rau qhov yooj yim leaming ntawm lub tshuab ua haujlwm. Ib qho kev kuaj mob tshiab tsim txhawb cov neeg ua haujlwm hauv kev xaiv cov kev hloov kho zoo tshaj plaws. Lub sij hawm-siv teeb meem tua tsis tsim nyog lawm thiab kev tsim khoom downtimes raug txo kom tsawg. Los ntawm kev siv cov cuab yeej siv thev naus laus zis tshiab, txhua cov ntaub ntawv tuaj yeem raug kaw, ntsuas thiab khaws cia. Cov ntaub ntawv no muaj nyob txhua qhov chaw ua tsaug rau kev cog lus ua tiav.
Technical Data
Qhov yooj yim configuration ntawm zenith 1500 ib qho thaiv ua tshuab | |
Max. board loj | 1,400 x 1,200 mm x 14 mm |
Moulding cheeb tsam | Raws li qhov layout daim duab ntawm lub pwm |
Khoom loj | 50mm-500mm |
Technical parameters tsis siv neeg tub tsheb | |
Max. load peev | 15kg ua |
Max. load peev xwm rau ib tug insertion khib | Raws li tsim |
Max load peev xwm txhua ob txheej ntawm insertion khib | Raws li tsim |
Sab hauv dav ntawm kev txhawb nqa bracket | 1,060mm 3 |
Layers ntawm insertion khib | Tsim raws li lub tswv yim |
Qhov deb ntawm qhov ntxig khib | Raws li tsim |
Niam lub tsheb tsav lub zog | TSI 11 KW |
Khoom siab | |
Max. qhov siab | 500 hli |
Min. qhov siab | 30 hli |
Stacking qhov siab | |
Max. Stacking qhov siab (nrog rau lub pallet) | 1,800 hli |
Max. Ntau lawm cheeb tsam (nyob rau hauv zus tau tej cov qauv loj) | 1,350 * 1,050 hli |
Pallet loj (standard) | 1,400 * 1,100 hli |
Hlau phaj thickness | 14mm ib |
Base khoom silo ntim | |
Tsis suav nrog pigments silo | 1,500 L |
Tshuab qhov siab | |
Tsis suav cov khoom siv pigments | 35t ua |
Pallet conveyor | 1.6t ib |
Hydraulic ntaus ntawv | 3.2t ib |
Tshuab loj | |
Max. tag nrho ntev | 8, 250 mm |
Max. tag nrho qhov siab | 4, 650 mm |
Max. dav dav | 3,150 mm |
Tshuab tecnical tsis / zog noj | |
Kev vibration system | Servo vibration system |
Vibration rooj | Qhov siab tshaj plaws: 175KN, 60HZ |
Sab saum toj vibration | Qhov siab tshaj plaws: 32KN |

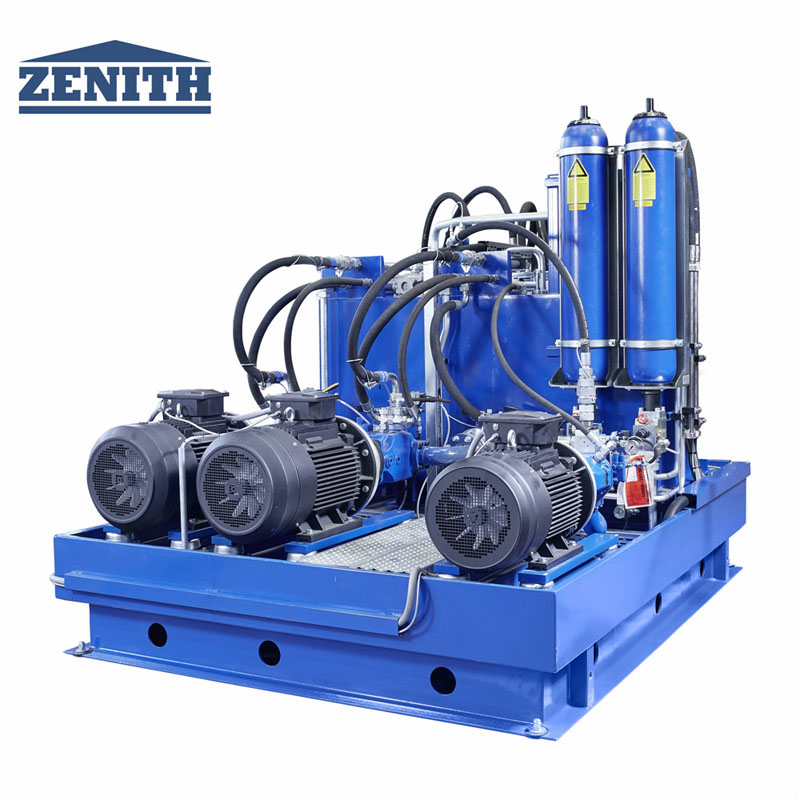

Hydraulic siab | |
Tag nrho ntws | 540L / min |
Kev khiav hauj lwm siab | 180bar ua |
Max. zog | 140 KW TSI |

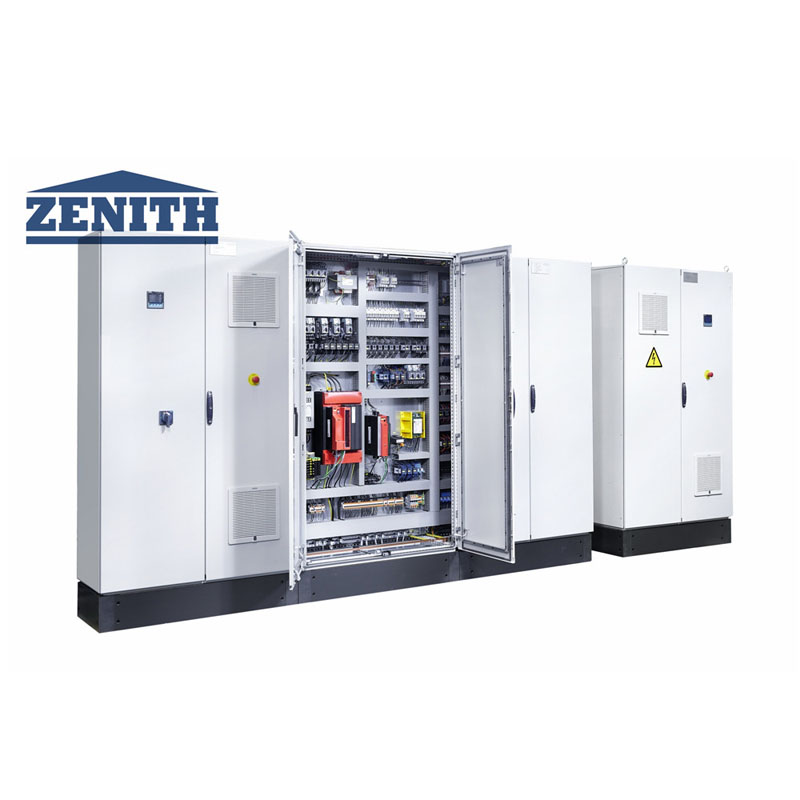

Tswj qhov system | Siemens S7-1500, kov npo console |
Muaj Peev Xwm Ntau Lawm
Thaiv Hom | Qhov Loj (mm) | Duab | Qty/Cycle | Lub Sijhawm Sijhawm | Kev Muaj Peev Xwm Ntau Lawm (Rau 8hs) |
Hollow Thaiv | 400 * 200 * 200 hli | 15 | 15s ib | 28,800 pcs | |
Rectangular Paver | 200 * 100 * 30 hli | 60 | 14s ib | 2,419m 2 | |
Rectangular Paver (tsis muaj facemix) | 200 * 100 * 80 hli | 60 | 115 | 3,110 m 2 | |
Curstone | 150 * 1000 * 300 hli | 6 | 20s ib | 8,640 ua |
