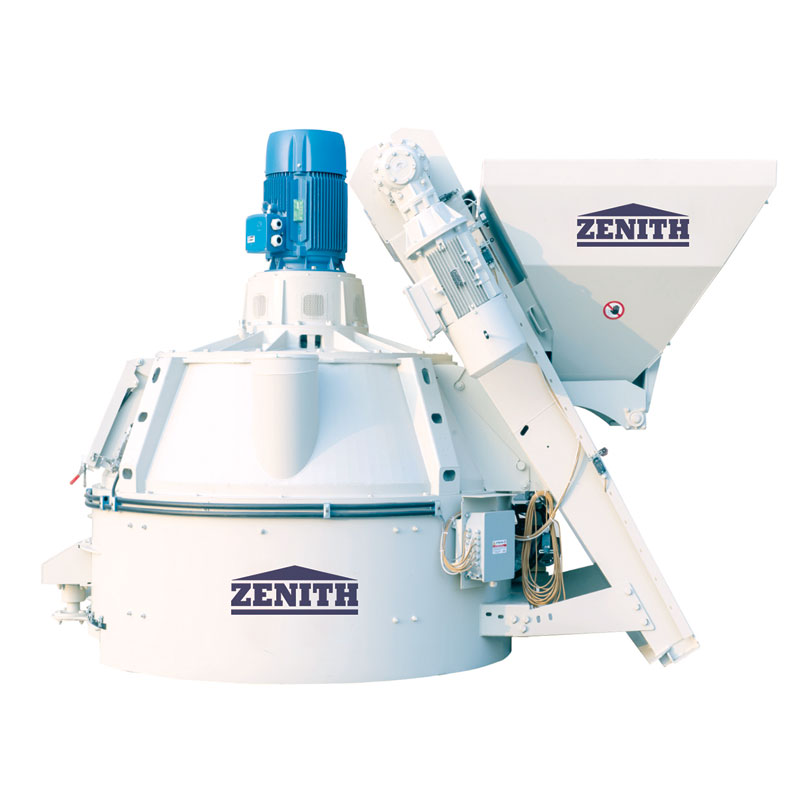

Planetary Mixer
  • Planetary Mixer Planetary Mixer

Planetary Mixer

Koj tau so assured mus yuav Planetary Mixer los ntawm peb lub hoobkas. Lub planetary mixer yog tsav los ntawm kev sib xyaw lub cev muaj zog thiab lub planetary iav reducer. Lub vaj tse reducer yog tsav los ntawm lub zog sab hauv kom tig, thiab 1-2 txheej ntawm lub ntiaj teb caj npab ntawm lub reducer tig ntawm lawv tus kheej, tso cai rau lub tov khoom tig 360 ° yam tsis muaj qhov chaw tuag thiab sib tov cov ntaub ntawv sai thiab ua tau zoo. Cov khoom sib txawv thiab cov khoom siv sib txawv tuaj yeem siv los ua kom tau raws li ntau yam khoom sib xyaw.

Xa lus nug

Product Description

Koj tau so assured mus yuav Planetary Mixer los ntawm peb lub hoobkas. Lub ntiaj teb sib tov muaj qhov sib xyaw zoo sib xws, ncav cuag ntau dua 90%, lub voj voog luv luv, kev ua haujlwm siab ntau lawm, thiab ntau yam ntawm cov qauv tsim tawm. Nws tuaj yeem siv tsis tau tsuas yog rau kev sim sib xyaw, tab sis kuj yog rau cov kab ntau lawm. Lwm qhov zoo dua ntawm cov khoom sib xyaw planetary yog tias cov paug tawm huv si thiab tsis muaj cov khoom seem nyob hauv qab ntawm cov khoom siv lub tog raj kheej.

Technical Parameters

lt MMP375 MMP500 MMP750 MMP1000 MMP1500 MMP2000
Tawm peev xwm (Lt.) 375 500 750 1000 1500 2000
Pub muaj peev xwm (Lt.) 550 750 1125 1500 2250 3000
Tank muaj peev xwm (Lt) 1050 1350 1900 2350 4100 5400
Theoretical productivity (m / h) 7.5 10 15 20 30 40
Qhov siab tshaj plaws txoj kab uas hla ntawm aggregate (cobbe / crushed pob zeb) (mm) <40 <40 <40 <40 <40 <40
Lub sij hawm voj voog (s) 180 180 180 180 180 180
Tag nrho qhov hnyav (kg) 3125 3790 6003 7826 9130 11200
Loj (mm) Ntev 3419 3573 3994 4367 4674 5160
Qhov siab 2058 2176 2343 2500 2766 3480
Dav 1860 2054 3141 3134 3408 3270
Agitating vane Kev sib hloov ceev (r / min) 44 + 240 (siab ceev) 44+ 240 (siab ceev) 31 25.7 25 22
Kev hloov pauv ceev (r / min) 21 21 14 10.5 10.5 9.5
Qty. 13 16 4 7 6 6
Theoretical ife voj voog 10,000 khob 10,000 khob 10,000 khob 10,000 khob 10,000 khob 10,000 khob
Phaj Qty Sab phaj 48 70 102 11 126 138
Hauv qab phaj 45 62 82 106 112 143
Theoretical ife voj voog 20,000 khob 20,000 khob 20,000 khob 20,000 khob 20,000 khob 20,000 khob
Mixing zog (kw) 18.5 22 30 45 55 75
Hoister lub cev muaj zog (kw) 4 5.5 7.5 11 15 22
Lifting ceev (m / s) 0.3 0.3 0.3 0.3 0.3 0.3
Hydraulic twj tso kua mis chaw nres tsheb fais fab (kw) 2.2 2.2 3 3 3 3
Dej twj tso kua mis (kw) Lub twj tso kua mis 0.75 0.75 2.2 3 4 6.5
Lub twj tso kua mis 1.1 1.1 2.2 2.2 2.2 2.2
Qhov hnyav tshaj plaws rau cov khoom siv (Lt) 200 200 400 500 700 800
Qhov hnyav tshaj plaws rau cement (Lt) 90 90 140 180 300 400
