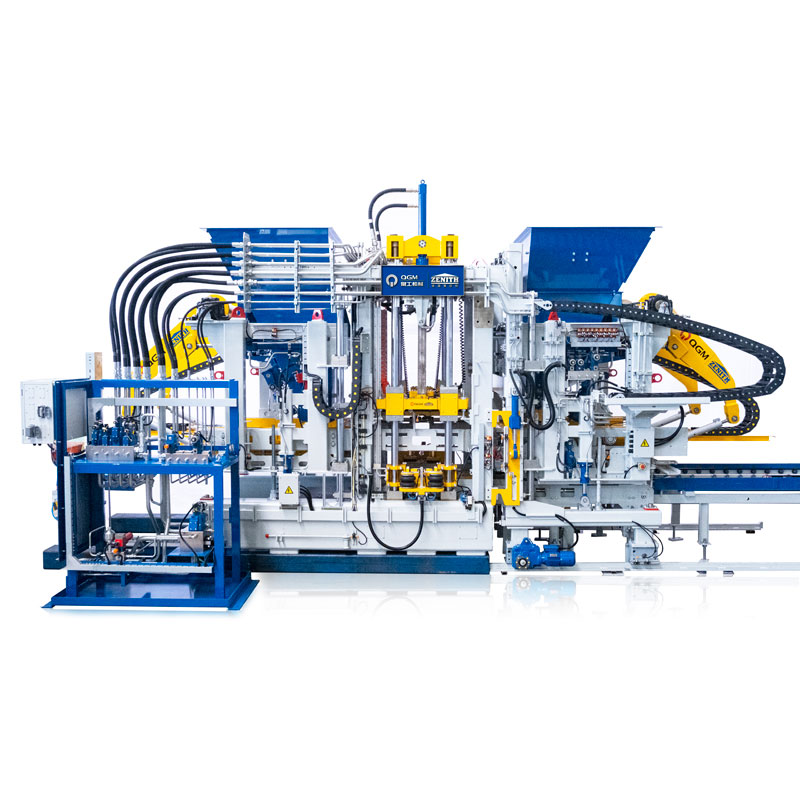

ZN1000C pob zeb thaiv tshuab

Koj tau so assured mus yuav ZN1000C pob zeb thaiv tshuab los ntawm peb lub hoobkas. ZN1000C thaiv tshuab yog tsim nyob rau hauv Suav teb, nruj me ntsis raws li German technology thiab craftsmanship, siv German technology, thiab yog lub ntiaj teb no tus thawj block tshuab technology. German thev naus laus zis paub txog nws txoj kev nruj thiab kev yooj yim, thiab them nyiaj ntau rau kev ua haujlwm tag nrho, kev ua haujlwm zoo thiab tshuab zoo. Cov yam ntxwv ntawm ZN1000C Concrete Block Machines muaj kev ua haujlwm ruaj khov, kev ua haujlwm ntau dua thiab qis dua tus nqi. Hais txog kev ua tau zoo, kev ua tau zoo, kev txuag hluav taws xob, kev tiv thaiv ib puag ncig thiab lwm yam, nws yog qhov ua ntej ntawm lwm cov tshuab thaiv hauv kev ua lag luam.

Main Technology nta

1) Kev tswj hwm kev hloov pauv ntau zaus

Txo lub cev muaj zog pib tam sim no thiab mos pib ua haujlwm tswj, ncua lub neej ntawm lub cev muaj zog. Lub ntsiab oscillator ntawm ZN1000C Qhob Thaiv Tshuab txais kev ua haujlwm qis qis thiab kev ua haujlwm siab, uas txhim kho kev khiav hauj lwm ceev thiab cov khoom zoo. Txo cov khoom siv hluav taws xob thiab lub cev muaj zog, ua kom lub neej ntev ntawm lub cev muaj zog thiab cov khoom siv kho tshuab. Lub zaus conveter txuag txog 20% ​​-40% lub zog tshaj li ib txwm hloov pauv.

2) Lub teb chaws Yelemees Siemens PLC tswj qhov system, Siemens touchscreen, Lub teb chaws Yelemees

Kev ua haujlwm yooj yim, tsis muaj qhov sib piv, ZN1000C pob zeb thaiv tshuab khiav ruaj khov thiab muaj kev ntseeg siab.Siv cov thev naus laus zis tshaj plaws hauv kev lag luam hauv internet, paub txog tej thaj chaw deb teeb meem-tua & txij nkawm. PLC thiab touchscreen siv PROFINET internet ua ke, yooj yim rau kev kuaj mob thiab WEB nthuav dav. Ua tiav qhov teeb meem kev kuaj mob thiab lub tswb nrov tas li, yooj yim rau kev tu lub tshuab thiab kev daws teeb meem. PLC khiav cov ntaub ntawv rau kev khaws cia mus tas li.

3) Vibration System

Lub rooj vibration muaj nrog lub rooj dynamic thiab lub rooj zoo li qub. Thaum vibration pib, dynamic rooj vibrate, static table nyob twj ywm zoo li qub. Cov qauv yog tsim los xyuas kom meej lub amplitude ntawm lub vibration rooj, thiaj li yuav xyuas kom meej qhov zoo ntawm cov khoom ua vaj tse. Lub rooj vibration siv HARDOX steel. Vibration hom: siv lub vibration rooj vibration + sab saum toj pwm kev co; vibration motor installation kev co damping ntaus ntawv thiab cua txias ntaus ntawv.

4) Pub System

Lub cev muaj zog siv SEW motors, uas tswj ob qho sib xyaw ua ke. Pub thav duab, hauv qab phaj thiab cov hniav sib tov yog ua los ntawm HARDOX steel, qhov chaw ntawm cov phaj hauv qab tuaj yeem hloov kho.Pib qhov system muaj cov khoom sib khi los tiv thaiv kom tsis txhob yaig. Lub qhov rooj ntawm lub qhov rooj tawm yog tswj los ntawm SEW lub cev muaj zog.

5) Chaw nres tsheb Hydraulic

Hydraulic twj thiab hydraulic li qub tau txais cov npe thoob ntiaj teb. Tube siv "Flange Connection, yooj yim installation thiab txij nkawm. Multi-point siab detection point, yooj yim nrhiav tau. Digital kub thiab blockage tswb muaj nuj nqi. Lub cev muaj zog thiab twj tso kua mis kev twb kev txuas, flange kev twb kev txuas, zoo coaxial. Dynamic proportional valve thiab tas li fais fab twj tso kua mis, ceev tswj, kev tswj hluav taws xob, txuag hluav taws xob.

Technical Data

Max. Forming Area	1,100 * 820mm
Qhov siab ntawm cov khoom tiav	20-300 hli
Moulding voj voog	15-25 s
Txaus siab rau lub zog	80 KN
Pallet Loj	1,200 * 870 * (12-45) hli
Tsim thaiv tus lej	390 * 190 * 190mm (10 blocks / pwm)
Vibration rooj	2 * 7.5 KW
Sab saum toj vibration	2 * 0.55 kWm
Hluav taws xob tswj qhov system	SIEMENS
Tag nrho qhov hnyav	42.25 kWm
Tshuab Dimension	12 T

Muaj Peev Xwm Ntau Lawm

Thaiv Hom	Tso zis	ZN1000C Block Ua Tshuab
240 * 115 * 53mm	Tus naj npawb ntawm cov blocks (block / pwm)	50
	Cubic meter / teev (m3 / teev)	13-18
	Cubic meter / hnub (m3 / 8 teev)	1005-1400 Nws
	Tus naj npawb ntawm cib (blocks / m3)	683
390 * 190 * 190 hli	Tus naj npawb ntawm cov blocks (block / pwm)	9
	Cubic meter / teev (m3 / teev)	22.8-30.4 Nws
	Cubic meter / hnub (m3 / 8 teev)	182.5-243.3
	Tus naj npawb ntawm cib (blocks / m3)	71
400 * 400 * 80mm	Tus naj npawb ntawm cov blocks (block / pwm)	3
	Cubic meter / teev (m3 / teev)	69.1-86.4 ib
	Cubic meter / hnub (m3 / 8 teev)	553-691.2
	Tus naj npawb ntawm cib (blocks / m3)	432-540 : kuv
245 * 185 * 75mm	Tus naj npawb ntawm cov blocks (block / pwm)	15
	Cubic meter / teev (m3 / teev)	97.5-121.5 Nws
	Cubic meter / hnub (m3 / 8 teev)	777.6-972
	Tus naj npawb ntawm cib (blocks / m3)	2160-2700 Nws
250 * 250 * 60mm	Tus naj npawb ntawm cov blocks (block / pwm)	8
	Cubic meter / teev (m3 / teev)	72-90 : kuv
	Cubic meter / hnub (m3 / 8 teev)	576-720 : kuv
	Tus naj npawb ntawm cib (blocks / m3)	1152-1440 Ib
225 * 112.5 * 60	Tus naj npawb ntawm cov blocks (block / pwm)	25
	Cubic meter / teev (m3 / teev)	91.1-113.9
	Cubic meter / hnub (m3 / 8 teev)	728.9-911.2
	Tus naj npawb ntawm cib (blocks / m3)	3600-4500 Nws
200 * 100 * 60 hli	Tus naj npawb ntawm cov blocks (block / pwm)	36
	Cubic meter / teev (m3 / teev)	103.7-129.6
	Cubic meter / hnub (m3 / 8 teev)	829.4-1036.8
	Tus naj npawb ntawm cib (blocks / m3)	5184-6480 Ib
200 * 200 * 60 hli	Tus naj npawb ntawm cov blocks (block / pwm)	4
	Cubic meter / teev (m3 / teev)	72-90 : kuv
	Cubic meter / hnub (m3 / 8 teev)	576-720 : kuv
	Tus naj npawb ntawm cib (blocks / m3)	576-720 : kuv
