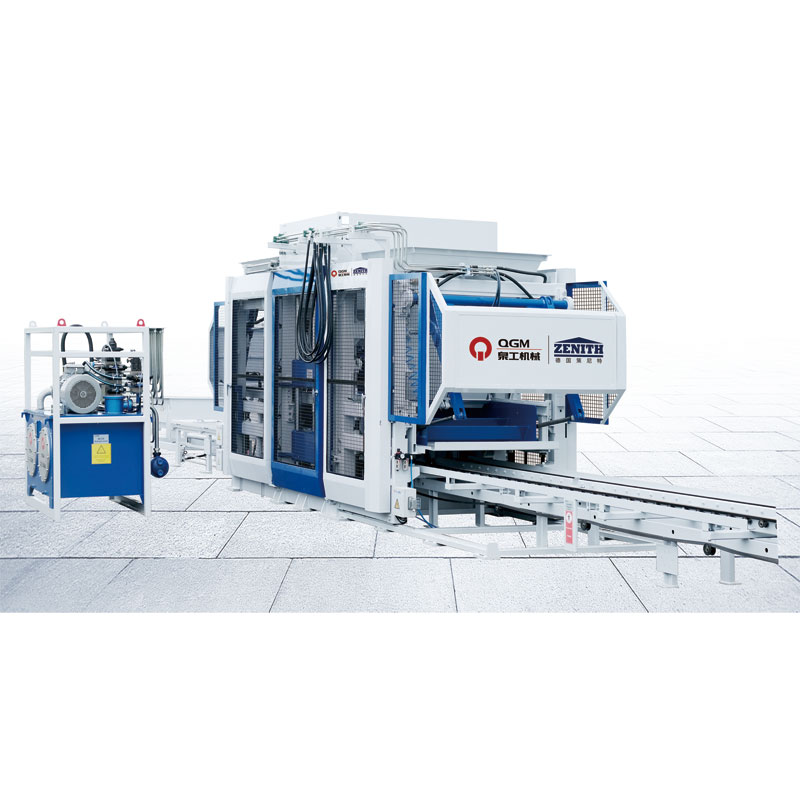

ZN1200S pob zeb thaiv tshuab

ZN1200S Qhob Thaiv Tshuab yog tsim nyob rau hauv Tuam Tshoj los ntawm nruj me ntsis raws li lub German technology thiab craftsmanship. Piv nrog rau lwm hom, ZN1200S muaj kev ua haujlwm ruaj khov dua, kev ua haujlwm ntau dua thiab qis dua tus nqi. Nyob rau hauv cov nqe lus ntawm kev ua tau zoo, efficiency, txuag hluav taws xob, kev tiv thaiv ib puag ncig. thiab lwm yam, nws nyob deb ua ntej ntawm lwm lub tshuab thaiv hauv khw.

Xa lus nug

Product Description

1) Lub ZN1200S Qhob Thaiv Tshuab txais kev hloov pauv zaus los txo qhov pib tam sim no ntawm lub cev muaj zog. Qhov no ua tiav lub synchronous kev khiav hauj lwm ntawm kev co sib dhos thiab daws cov teeb meem inertia lub cev muaj zog thaum nres, txuag hluav taws xob los ntawm 20% -30%.

2) Nrog rau kev saws los ntawm lub teb chaws Yelemees Siemens PLC thiab Siemens kov npo tswj, kev ua haujlwm yog ib qho yooj yim, tag nrho cov kev ua txhaum yog tsawg thiab cov ntaub ntawv kev khiav hauj lwm tuaj yeem txuag tau mus tas li.

3) Lub kaw lus hydraulic yog tswj los ntawm qhov sib npaug ntawm lub valve kom hloov kho qhov ntws thaum lub sijhawm tsim khoom, txhim kho kev ua haujlwm ruaj khov thiab ua kom lub neej ntev ntawm lub tog raj kheej.

4) Lub tsheb pub noj siv 360 rotary feeding txoj kev nrog ceev ceev thiab sib faib, muaj feem xyuam rau ntau yam raw khoom thiab pwm.

5) Tom qab kev kho cabonitriding, cov pwm tuaj yeem tiv taus hnav thiab muaj kev pab cuam lub neej ntev dua 50% ntev dua li cov pwm.

6) ZN1200S Qhob Thaiv Tshuab yog nruab nrog lub sijhawm kuaj xyuas qhov tsis raug thiab lub tswb nrov.

7) Lub rooj vibration yog txuas nrog lub rooj zaum ua haujlwm thiab qhov sib nrug ntawm lub eccentric ncej yog loj, txo qhov poob ntawm lub zog hloov, ua kom muaj txiaj ntsig zoo ntawm qhov chaw vibration thiab txhim kho kev co efficiency.

Technical Data

Pallet Loj	1,200 * 1,150 hli
Tsim cheeb tsam	1,100 * 1,080 hli
Qhov siab ntawm cov khoom tiav	50-300 hli
Lub Sijhawm Sijhawm	15-25s (raws li cov pwm)
Vibration Force	120 KN
Hauv qab vibration	2 * 15KW (SIEMENS)
Sab saum toj Vibration	2 * 0.55 kWm
Hwj chim	70, 35 kWm
Qhov hnyav tag nrho	Lub ntsiab tshuab: 14 98T Nrog facemix ntaus ntawv: 18.49T

Muaj Peev Xwm Ntau Lawm

Thaiv Hom	Qhov Loj (mm)	Duab	Qty/Cycle	Kev Muaj Peev Xwm Ntau Lawm (Rau 8hs)
Hollow Thaiv	390 * 190 * 190 hli		12	14,400-16,800 pcs
Rectangular Paver	200 * 100 * 60-80		36	1,000-1,200 m2
Interlocks	225 * 112.5 * 60 - 80		32	35,200-38,400pcs
Curstone	500 * 150 * 300 hli		4	4,400-5,600 pcs
