ZN2000C Qhob Thaiv Tshuab

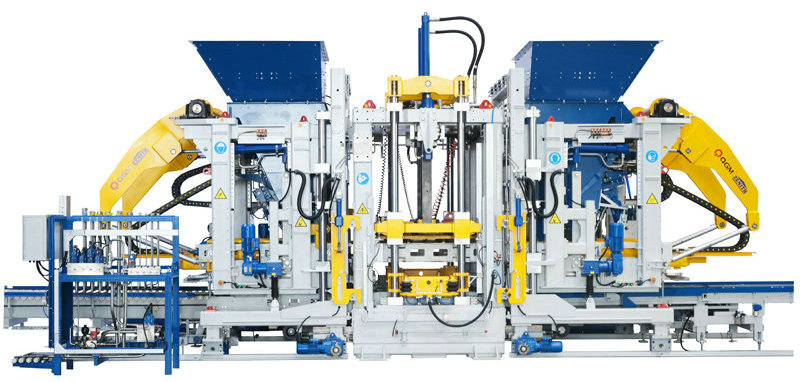

ZN2000C yog tus qauv tus kheej. Nws yog tus cwj pwm los ntawm kev kawm siab ntawm kev txawj ntse thiab kev siv tshuab, thiab siv cov ntaub ntawv siv cov tshuab digitalizies xws li siv cov chaw tsim khoom tshiab thiab daim txhuam cev rau lub nroog.

Nta:

Ob lub rooj kev co kua, yim servo motors (xaiv tau) cov khoom siv saum toj kawg nkaus

Modular Los Ua Ke Rau Yooj Yim Saib Xyuas Ntau Ntau Hom Kev Ua Phem Ntau Yam

Muaj peev xwm ntau dua, tau tsim tau ntau duaTECHNICAL ARAMETERS:

Pallet loj 1400x1400 / 1300mm

Txoj kev tsim thaj 1320x1350 / 1250 hli

Cov khoom siab 40-500mm

Tus naj npawb ntawm cov blocks hollow cib: 18 blocks / Pwm (390x190x190mm)

Txheem cib: 105 block / pwm (240x115x5x5x5x3mm)

Txoj Kev Cib: 66 blocks / Pwm (200x100x60mm)

Cov khoom siv loj me kwv yees li. 10,000

Kwv yees li. 4,700

Kwv yees li. 3,400

Kev co txoj kab ke siab siab siab siab zam ntawm kev co lub rooj: 200 / Kn

Qhov siab tshaj plaws lub zog ntawm xovxwm taub hau: 40 / Kn

Hluav taws xob tsis tag nrho cov hluav taws xob (siv): 231 / KW

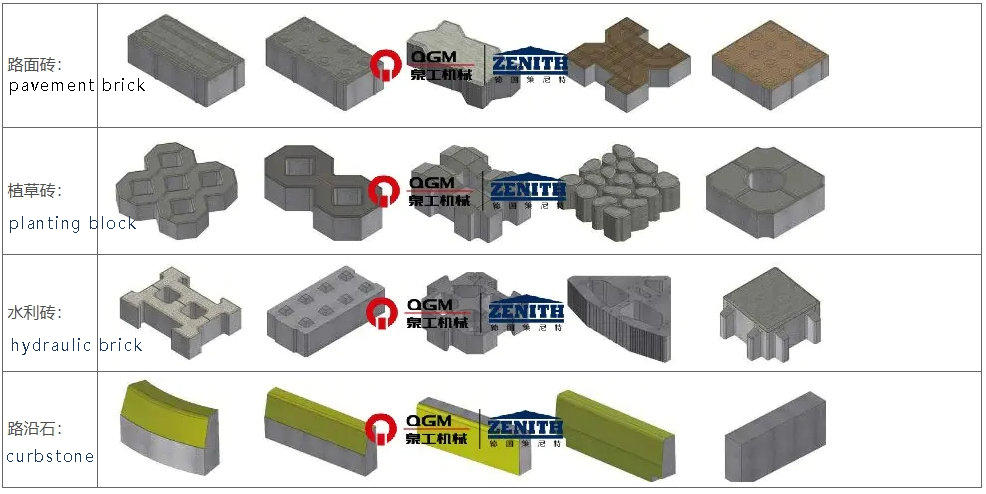

Schematic daim duab ntawm cov pob txha nkhaus tsim los ntawm cov khoom siv

Qhov zoo heev

1. Cov qauv zoo tsim qauv ntawm German version

Lub Mainframe ncej tau txais lub siab-zog Welded Ncej Qauv Tsim los ntawm cov neeg tshwj xeeb uas tsim nyog, thiab cov ncej zoo nkauj los ntawm kev ua kom zoo dua los kho cov kev ua kom siab thiab muaj kev ruaj khov ntawm tus ncej. Cov txheej txheem tsim qauv tsim ua qhov tseem ceeb, thiab cov tog kev sib xyaw ua ke, thiab lwm yam. Tuaj yeem ntxiv tom qab.

2. hnov ​​cov pwm hloov hluav taws xob ceev hloov system

Thaum cov pwm hloov mus rau txoj hauj lwm tus tswv, nws txoj kev nqa system pom tau tsis siv neeg pwm hloov pauv ntawm lub tshuab hloov pwm saim. Lub sab saud thiab qis dua clamped pneumatically, uas muaj kev nyab xeeb, txuag tau zoo, yooj yim los tswj hwm. Nws mas suav nrog:

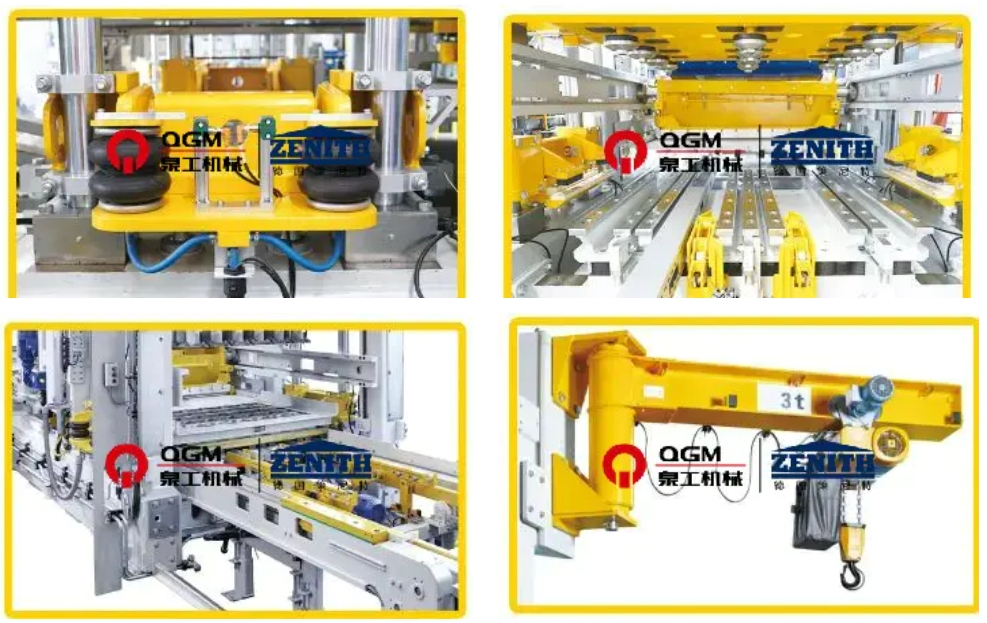

Pneumatic moulding clamping ntaus ntawv: nws tsuas yog muaj pwm clacket thiab pneumatic tshuab thiab damping thaum lub sij hawm kev ua kom zoo tshaj plaws kev co nyhuv thiab ntev kev pabcuam lub neej ntawm pwm.

Pneumatic Indenter Xauv Ntaus: Tus neeg sab hauv yog tsau los ntawm kev hloov pauv ntawm cov pa hluav taws xob, ua kom pom tseeb lub suab nrov, thiab ua kom pom kev zoo sai sai

Cov cuab yeej siv hluav taws xob cov khoom siv hluav taws xob: Cov pwm MOUNDING siv rau hauv lub tshuab hluav taws xob hauv khw, thiab cov cim pwm tshwj xeeb tuaj yeem siv rau cov pwm tshwj xeeb.

Kev hloov pauv ntawm cov khoom siv: ntsia rau ntawm lub tshuab ntawm lub cav tseem ceeb, nws yog siv rau kev nqa pwm thiab hloov cov saw hlau hoist thiab hluav taws xob taug kev.

3. Fabrication Systems

4. "Ultra-dynamic" servo co system:

"Ultra-dynio kev co tshuab yog ib hom kev ua haujlwm siab tshwj xeeb, kev hloov kho tus kheej tshwj xeeb tsim rau cov tshuab cib; Lub cev muaj zog servo tuaj yeem ua rau cov lus teb nrawm tshaj plaws hauv kev ua kom zoo tshaj plaws, ua kom muaj cov khoom siv ntau lawm, ua cov khoom lag luam siab; Qhov kev co tau yooj yim yoog raws qhov kev xav tau ntawm cov khoom lag luam sib txawv. Lub cev muaj zog servo tuaj yeem ua rau cov lus teb ceev tshaj plaws hauv kev ua kom tiav ntawm cov khoom noj kom zoo nkauj, thiab ua kom luv dua cov khoom lag luam muaj txiaj ntsig zoo nkauj; Qhov kev co tau yoog raws kev tsim khoom ntau lawm ntawm cov khoom sib txawv ntawm cov khoom sib txawv.

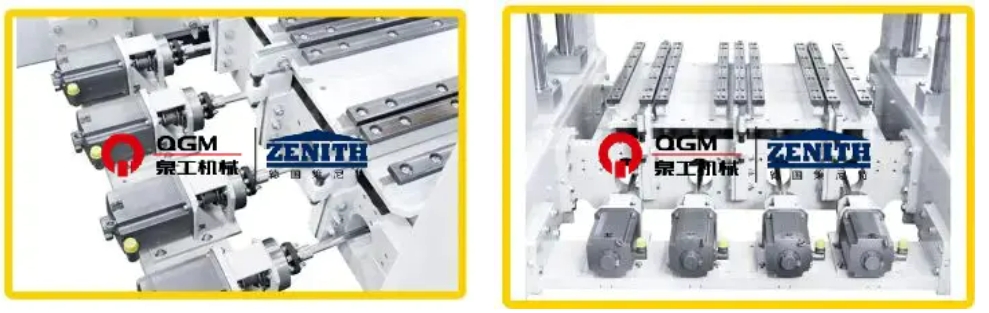

8 Kev co chav nyob nrog cov tshuab sib npaug teeb ntawm ib tus zuj zus los ntawm 8 servo drives;

8 servo motors, tus kheej mounted rau ntawm sab nraud kev cai ua kev co kev cai co teeb ntawm lub cev muaj zog;

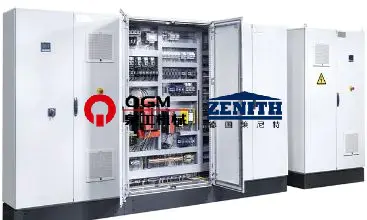

5. Qhov tseeb servo tswj system

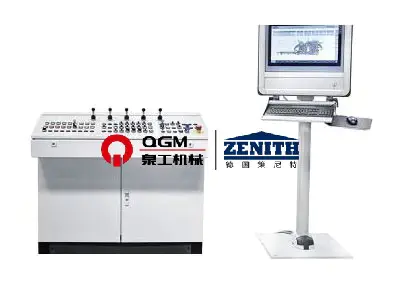

Los ntawm lub teeb liab tawm tswv yim, tswj cov theem thiab nrawm ntawm kev co, synchronized tsa tswj, yuav ua tiav kev tshem tawm luv luv, kom ua tiav cov khoom siv roj molding, thiab zoo dua braking nyhuv. Los ntawm txoj haujlwm thiab ceev ob chav kaw-lub voj voos, tswj qhov kev ua haujlwm zoo siab, thiab muaj peev xwm ua kom muaj kev ua haujlwm zoo rau cov khoom lag luam sib txawv, thiab tsim cov khoom lag luam sib txawv.

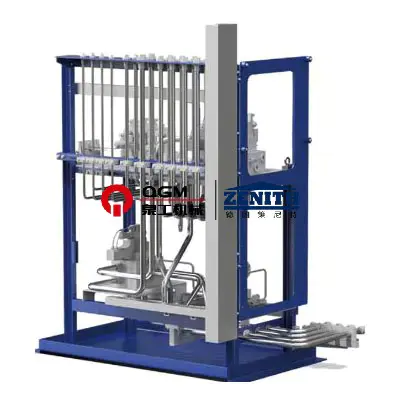

Cov xovxwm taub hau, cov ncej pwm, cov tsheb sib sau ua ke yog tswj hwm los ntawm kev sib faib xov hluav taws xob valve nrog cov tsiaj ntawv rov qab, uas muaj cov lus teb sai; Lub voj kaw-lub voj tswj hom ntawm sensplacement sensor / encoder-plc-tog kheej tau txais, thiab kev txiav txim ntawm lub tog raj kheej sai dua thiab ruaj khov; Cov chaw nres tsheb hydraulic adarts sib txawv piston twj tso kua mis, uas tsis tso lub twj tso kua mis thaum lub zog hydraulic nce mus txo lub zog siv hluav taws xob; Cov chaw nres tsheb hydraulic acects compress actairulator cov roj mov roj, uas txo kev siv hluav taws xob; Thiab cov chaw nres tsheb hydraulic acects accetulator muaj kev siv hluav taws xob roj, uas txo kev siv hluav taws xob thiab txo kev siv hluav taws xob. Cov chaw nres tsheb hydraulic acects ntsuas cov khoom siv roj, uas tuaj yeem siv rau ntau cov kev ua tib lub sijhawm, thiab lub siab ntawm cov kab ke hydraulic yog qhov ruaj khov; Cov kab ke hydraulic muaj lub siab sensors, uas tuaj yeem ua kom pom ntawm lub lag luam vaj huam sib luag rau qhov yooj yim saib; Lub system hydraulic muaj cov tshuab txias thiab cua sov thiab cua sov, uas tuaj yeem tswj cov roj kub, kom cov roj hydraulic muaj kev ua tau zoo.

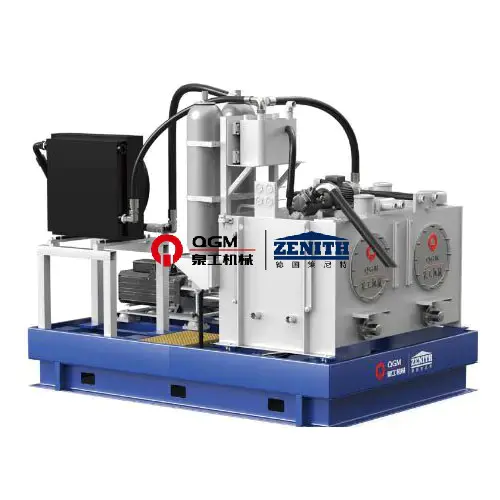

6. Cov Tshuab Hydraulic
