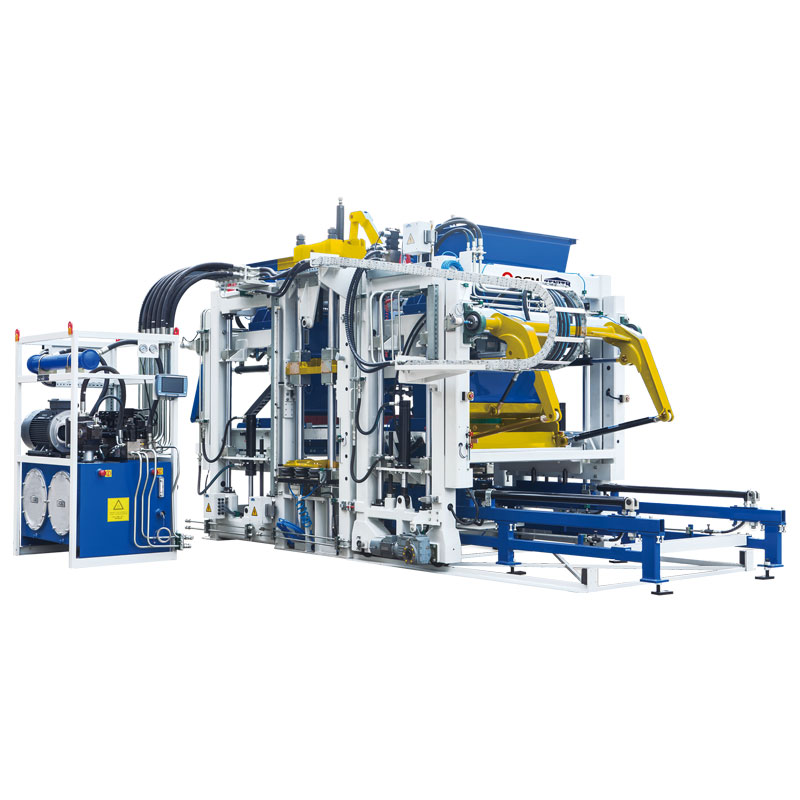

ZN900CG pob zeb thaiv tshuab

Koj tau so assured mus yuav customized ZN900CG pob zeb thaiv tshuab los ntawm peb. ZN900CG yog ib qho tsis siv neeg thaiv kev ua sachine, tsim nyob rau hauv lub teb chaws Yelemees, ua nyob rau hauv Suav teb. Muaj SIEMENS Zaus vibration lossis servo vibration motors hauv qab, 2x0.55KW vibrators rau saum kev co, kom ua tiav 100KN kev co quab yuam. Qhov siab ntawm cov khoom tuaj yeem nyob ntawm 40mm txog 300mm.

Main Technology nta

1) Xeem Servo Vibration Technology

Lub ZN900CG Qhob Thaiv Tshuab yog nruab nrog lub tshiab tsim servo vibration system, uas tuaj yeem ua kom lub zog vibration nyob rau hauv lub xeev synchronized, uas tuaj yeem lav qhov tso tawm ntsug ntawm lub zog compaction. Tsis tas li ntawd zam lub shear kev nyuaj siab puas tsuaj ntawm kab rov tav compaction quab yuam rau lub tshuab thiab ncua lub tshuab lifespan. Lub cev muaj zog ceev tuaj yeem ncav cuag ntau dua 4000 rpm, uas tuaj yeem ua kom muaj kev sib zog loj dua qhov thaiv qhov zoo yuav zoo dua.

2) Tsis Siv Neeg Pwm Clamping System nrog AirBags

Muaj cov hnab cua ntawm lub taub hau tamper ob sab ntawm ZN900CG Qhob Thaiv Tshuab. Tom qab cov pwm raug thawb mus rau hauv qhov chaw, lub airbag ntawm lub taub hau tamper yog inflated thiab nruj txiav. Thaum kawg, lub airbag ntawm pwm thav duab yog inflated rau clampthe pwm ncej txiav. Nyob rau hauv txoj kev no, nws tuaj yeem pab txuag tau ntau lub sijhawm rau kev hloov cov pwm sib txawv, txo cov suab nrov vibration kuj nce ntau lawm efficiency.

3) Ob chav Vibration System

Lub rooj vibration tau txais kev ua haujlwm siab Sweden HARDOX steel, muaj cov lus dynamic lub rooj zoo li qub, uas tuaj yeem txhim kho kev vibration efficiency. Thaum muaj lwm ob vibrators nyob rau sab saum toj, kom nce compaction & lav qhov zoo ntawm cov pob zeb ua vaj tse.

4) Kev tswj hwm kev hloov pauv ntau zaus

QGM tswj qhov system txais SIEMENS PLC, Touchscreen, contactors nyees khawm thiab lwm yam., uas zoo kawg nkaus ua ke cov tshuab tsis siv neeg thiab cov txheej txheem siab heev los ntawm lub teb chaws Yelemees.SIEMENS PLC muaj cov teeb meem tsis siv neeg tua kev ua haujlwm rau kev saib xyuas yooj yim kuj tsis siv neeg kaw kom tsis txhob muaj kev sib tsoo tshuab los ntawm kev ua haujlwm yuam kev. Thaum lub SIEMENS kov screen tuaj yeem tso saib cov xwm txheej tsim tawm hauv lub sijhawm ua haujlwm tau yooj yim los ntawm kev pom kev sawv cev. Nyob rau hauv rooj plaub uas ib feem puas tawg yav tom ntej, qhov hloov pauv tuaj yeem muab tau hauv zos, uas tuaj yeem txuag tau ntau lub sijhawm.

5) Intelligent Huab System

QGM cov cuab yeej ntse huab system paub txog kev saib xyuas online, kev hloov kho tej thaj chaw deb, tej thaj chaw deb kev twv ua ntej thiab kev kuaj tus kheej tsis raug, kev ntsuas kev noj qab haus huv ntawm cov khoom siv; tsim cov cuab yeej ua haujlwm thiab daim ntawv teev cov xwm txheej thiab lwm yam haujlwm; nrog rau qhov zoo ntawm kev tswj chaw taws teeb, kev daws teeb meem ceev & kev tu rau cov neeg siv khoom. Txhua yam yog kev sib tshuam, thiab kev tsim khoom thiab kev ua haujlwm ntawm cov khoom siv tuaj yeem pom los ntawm lub network hauv txhua lub ces kaum ntawm lub ntiaj teb.

Technical Data

Muaj Peev Xwm Ntau Lawm

Thaiv Hom	Qhov Loj (mm)	Duab	Qty/Cycle	Muaj Peev Xwm Ntau Lawm (rau 8hs)
Hollow Thaiv	390 * 190 * 190 hli		9	10,800-13,500pcs
Rectangular Paver	200 * 100 * 60-80		36	43,200-50,400pcs
Interlocks	225 * 112,5 * 60-80		25	30,000-37,500pcs
Curstone	500 * 150 * 300 hli		4	4,800-5,600pcs
