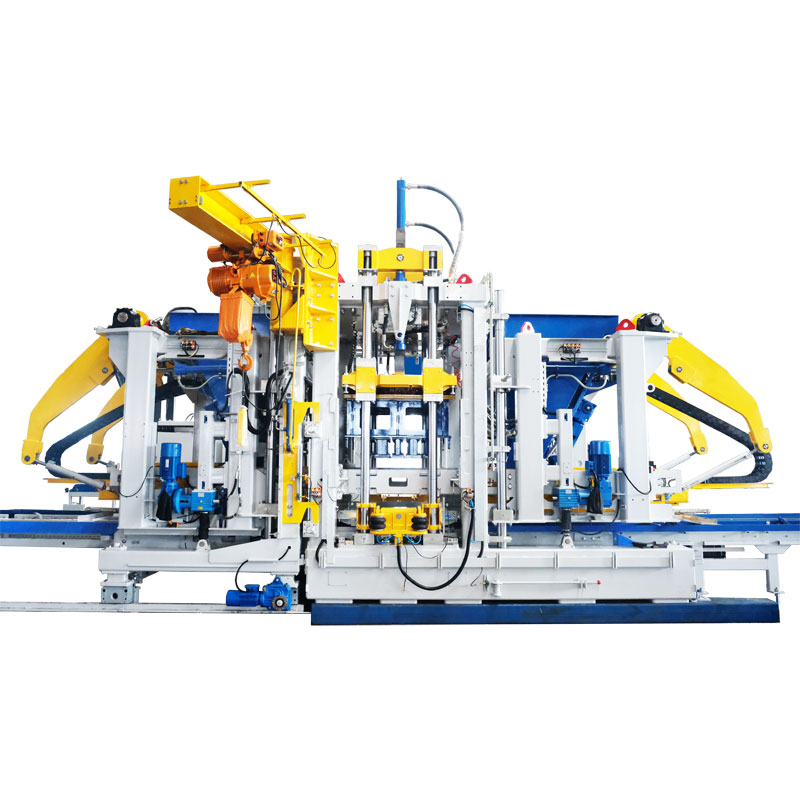

ZN1500-2C Tsis Siv Neeg Cement Block Ua Tshuab

ZN1500-2C Automatic Cement Block Making Machine muaj European Standard rau nws yog tsim los ntawm lub teb chaws Yelemees Zenith uas yog cov chaw tsim tshuaj paus muaj ntau tshaj 70-xyoo-kev paub ntawm block ua tshuab. Txhawm rau txo tus nqi, QGM pib nws qhov ntau lawm hauv Suav teb.
ZN1500-2C muaj qhov zoo ntawm kev tsim cov thev naus laus zis, muaj peev xwm loj dua, zoo dua thiab cov nqi ua haujlwm Pallet loj: 1, 400x1,100 / 1,200mm, Cov blocks sib txawv tuaj yeem tsim los ntawm kev hloov pwm nkaus xwb.

Xa lus nug

Product Description

Main Technology nta

1) Servo Vibration System

Lub ZN1500-2c tsis siv neeg Maas thaiv kev siv lub zog tshiab, yog li ua kom muaj txiaj ntsig zoo, tshwj xeeb tshaj yog rau cov khoom lag luam loj thiab cov khoom lag luam zoo, uas xav tau yuav tsum tau ua los ntawm pre-vibration thiab transitional vibration, tuaj yeem ua tiav cov txiaj ntsig zoo

2) Yuav tsum pub noj

Cov txheej txheem pub mis yog siv nrog lub teb chaws Yelemees patented tsim, uas yog tsim rau kev siv cov khoom siv pov tseg thiab lwm yam tshwj xeeb aggregates. Dab tsi ntxiv, lub rooj vag tawm yog tswj hwm los ntawm SEW lub cev muaj zog Cov khoom noj khoom haus, cov phaj hauv qab & cov hniav sib xyaw yog ua los ntawm cov haujlwm siab sweden HARDOx steel, uas ntxiv dag zog rau kev sib khi ua haujlwm thiab tiv thaiv cov khoom xau los lav lub neej ntev, pub mis rau txhim kho cov khoom zoo.

3) SIEMENS Zaus Hloov Hloov Tswj

SIEMENS zaus hloov dua siab tshiab thev naus laus zis tau rov tsim kho tshiab thiab txhim kho los ntawm lub teb chaws Yelemees R & D chaw. Lub tshuab tseem ceeb vibration adopts tsawg zaus standby, kev ua haujlwm siab, uas txhim kho kev khiav ceev thiab cov khoom zoo. Nyob rau tib lub sijhawm, nws txo qhov cuam tshuam rau cov khoom siv tshuab thiab lub cev muaj zog ua kom lub neej ntev ntawm lub tshuab thiab lub cev muaj zog, thiab txuag tau li ntawm 20% -30% ntawm hluav taws xob piv nrog cov tsoos tsav lub cev muaj zog tswj.

4) Tag Nrho Tsis Siv Neeg Tswj

Zoo meej ua ke nrog automation technology thiab system los ntawm lub teb chaws Yelemees. Kev tswj tsis siv neeg yog kev ua haujlwm yooj yim, tsis ua haujlwm piv txwv thiab kev ntseeg siab. Nyob rau tib lub sijhawm, nws muaj cov haujlwm ntawm cov khoom siv mis. kev tswj hwm thiab kev ua haujlwm sau cov ntaub ntawv.

5) High-npaum hydraulic system

Lub twj tso kua mis hydraulic & valve yog los ntawm cov khoom lag luam thoob ntiaj teb, uas txais yuav siab dynamic proportional valve thiab cov twj tso kua mis tas li los kho qhov ceev & siab, nrog cov yam ntxwv ntawm kev ruaj ntseg, kev ua haujlwm siab, thiab kev txuag hluav taws xob.

6) Intelligent Huab System

QGM cov cuab yeej ntse huab system paub txog kev saib xyuas hauv online, hloov kho tej thaj chaw deb, tej thaj chaw deb kev twv ua ntej thiab ua txhaum tus kheej, ntsuas cov khoom noj qab haus huv; tsim cov cuab yeej ua haujlwm thiab daim ntawv teev cov xwm txheej thiab lwm yam haujlwm; nrog rau qhov zoo ntawm kev tswj chaw taws teeb & kev ua haujlwm, kev daws teeb meem ceev & kev tu rau cov neeg siv khoom. Txhua yam yog kev sib tshuam, thiab kev tsim khoom thiab kev ua haujlwm ntawm cov cuab yeej tuaj yeem pom los ntawm lub network hauv txhua lub ces kaum ntawm lub ntiaj teb.

Technical Data

Qhov siab tshaj plaws tsim cheeb tsam	1,300 * 1,050 hli
Qhov siab ntawm cov khoom tiav	50-500 hli
Lub voj voog molding	20-25s (raws li cov khoom tsim)
Txaus siab rau lub zog	160 KN
Pallet loj	1,400 * 1,100/1200 * (14-50) hli
Tsim thaiv tus lej	390 * 190 * 190mm (15 block / pwm)
Vibration rooj	4 * 7.5 KW
Sab saum toj vibration	2 * 1.1 KW 2
Hluav taws xob tswj qhov system	SIEMENS
Tag nrho lub peev xwm nruab	PEB 111.3 KW
Tag nrho qhov hnyav	18.3T (tsis muaj lub ntsej muag khoom siv) 28.2T (nrog cov khoom siv ntsej muag)

Muaj Peev Xwm Ntau Lawm

Thaiv Hom	Tso zis	ZN1500-2C Block Ua Tshuab
240 * 115 * 53mm	Tus naj npawb ntawm cov blocks (block / pwm)	84
	Chav ua noj chav ua noj (m² / h)	400-420 : kuv
	square meter / hnub (m2 / 8 teev)	3180-3360 Ib
	Tus naj npawb ntawm block (blocks / m2)	36
390 * 190 * 190 hli	Tus naj npawb ntawm cov blocks (block / pwm)	15
	Cubic meter / teev (m3 / teev)	32-34 : kuv
	Cubic meter / hnub (m3/8 teev)	254-271 : kuv
	Tus naj npawb ntawm block (blocks / m³)	71
400 * 400 * 80mm	Tus naj npawb ntawm cov blocks (block / pwm)	3
	Cubic meter / teev (m3 / teev)	69.1-86.4 ib
	Cubic meter / hnub (m3 / 8 teev)	553-691.2
	Tus naj npawb ntawm block (blocks / m³)	432-540 : kuv
245 * 185 * 75mm	Tus naj npawb ntawm cov blocks (block / pwm)	15
	Cubic meter / teev (m3 / teev)	97.5-121.5 Nws
	Cubic meter / hnub (m³ / 8 teev)	777.6-972
	Tus naj npawb ntawm block (blocks/m³)	2160-2700 Nws
250 * 250 * 60mm	Tus naj npawb ntawm cov blocks (block / pwm)	8
	meter/teev (m3/teev)	72-90 : kuv
	square meter / hnub (m³ / 8 teev)	576-720 : kuv
	Tus naj npawb ntawm cib (blocks / m³)	1152-1440 Ib
225 * 112.5 * 60	Tus naj npawb ntawm cov blocks (block / pwm)	40
	Ib square meter/teev (m2/teev)	150-160 : kuv
	square meter / hnub (m2 / 8 teev)	1200-1280 Nws
	Tus naj npawb ntawm block (blocks / m2)	39.5
200 * 100 * 60 hli	Tus naj npawb ntawm cov tsim biocks (block / pwm)	54
	2 ' meter '/teev (m2/teev)	138-150 : kuv
	square meter/hnub (m2/8 teev)	1100-1200 Nws
	Tus naj npawb ntawm block (blocks / m2)	50
200 * 200 * 60 hli	Tus naj npawb ntawm cov blocks (block / pwm)	30
	2 ' meter '/teev (m2/teev)	180-195 : kuv
	square meter/hnub (m2/8 teev)	1440-1560 Ib
	Tus naj npawb ntawm block (blocks / m2)	25
